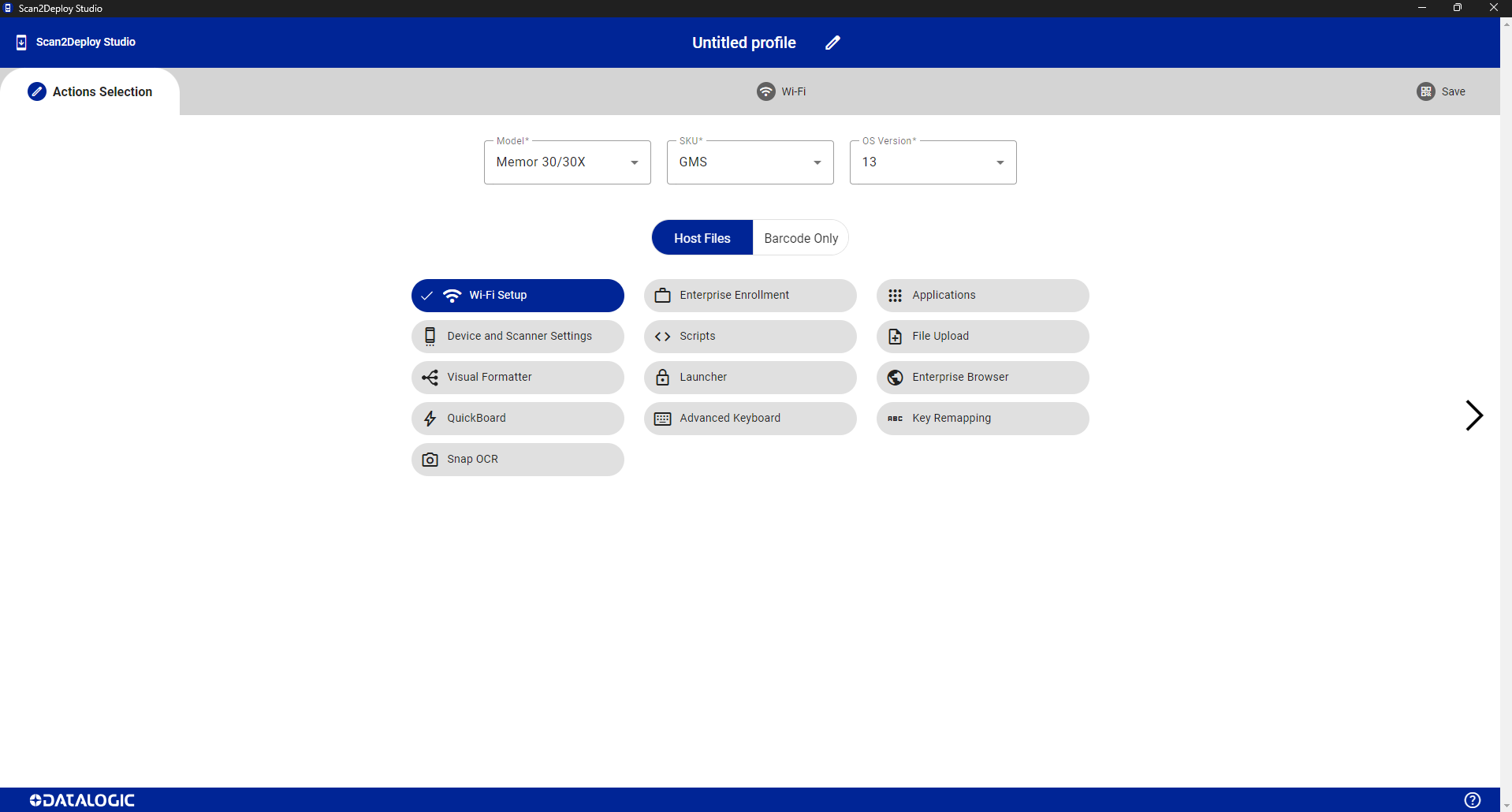

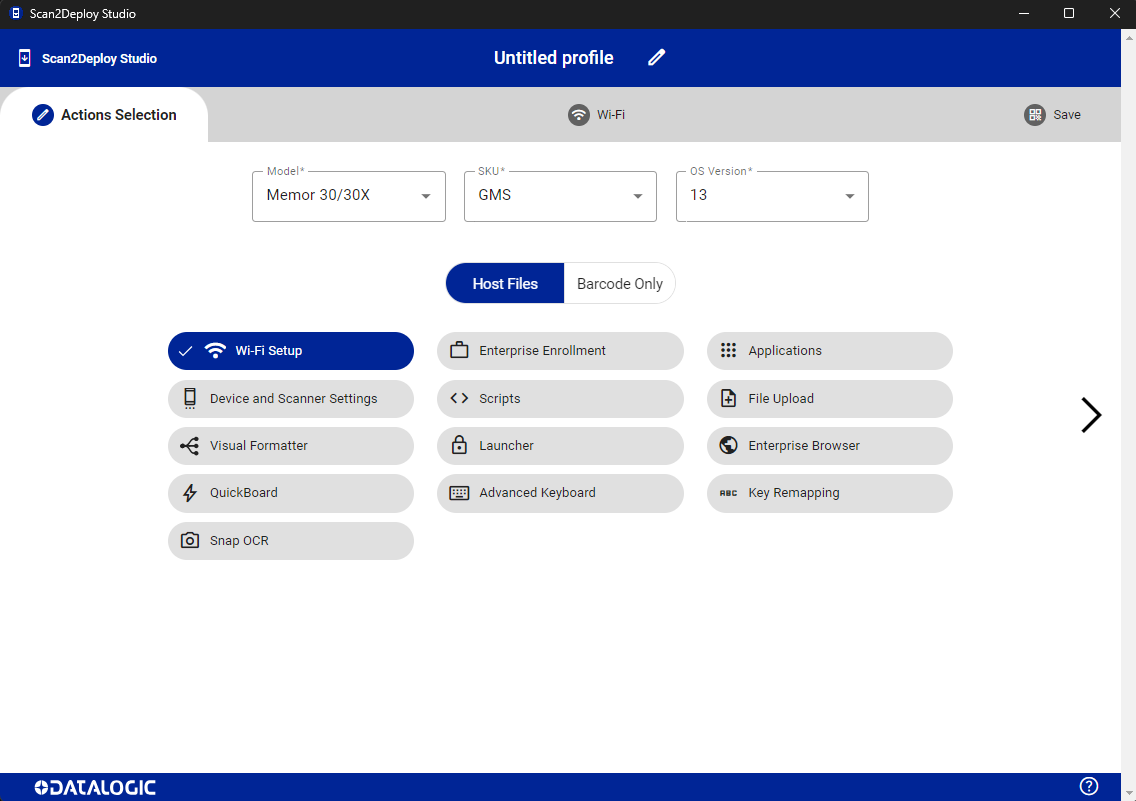

Action Selection Page
This page allows the user to select the type of device they want to configure, and add or remove various actions from the current profile. The available actions are split
into two categories, 'configuration actions' and 'firmware actions', correlating to the type of profile selected on the Welcome Page. These actions may be further restricted
depending on the device selection. By default, the Wi-Fi Setup
action is already selected.
Device Selection
These fields allow you to select the specific device you will be deploying to. The available actions and settings may change depending on your selection.
- Model (e.g. Memor 11, Skorpio X5, Joya Touch 22, etc.)
- SKU (e.g. GMS, AOSP, region-specific, etc.)
- OS Version (Android version)
Configuration Actions
Actions can be further broken down into two sub-selections based on the deployment method.
- Host Profile - Supports all actions. Selected by default.
- Barcode Only - Supports actions that do not require hosting of Scan2Deploy Profile.
- Host Profile
- Barcode Only
Action | Description | Device Specific |
---|---|---|
Wi-Fi Setup | Configure Wi-Fi network connection settings | ✓ |
Applications | ✓ | |
Device and Scanner Settings | Configure scanner settings and parameters | |
Scripts | Configure script commands to apply to the device | |
File Upload | Upload files with arbitrary file extension | |
Visual Formatter | Setup barcode visual formatting | |
Launcher | Configure Datalogic Launcher | ✓ |
Enterprise Browser | Configure Datalogic Enterprise Browser | |
Advanced Keyboard | Configure Datalogic Advanced Keyboard | ✓ |
Save and Scan *automatically added |
| ✓ |
Action | Description | Device Specific |
---|---|---|
Wi-Fi Setup | Configure Wi-Fi network connection settings | ✓ |
Applications |
| ✓ |
Device and Scanner Settings | Configure scanner settings and parameters | |
Scripts | Configure script commands to apply to the device | |
Save and Scan *automatically added |
|
Firmware Actions
Action | Description | Device Specific | Host required |
---|---|---|---|
Wi-Fi Setup | Configure Wi-Fi network connection settings | ✓ | |
Firmware Update | Update device firmware with OTA package | ✓ | ✓ |
Save and Scan *automatically added |
| ✓ |
Unlike configuration
profiles, firmware
profiles are much more limited as they are focused solely on updating device firmware.
