Scanner Options
Use this settings to configure the good read tone and display notification.

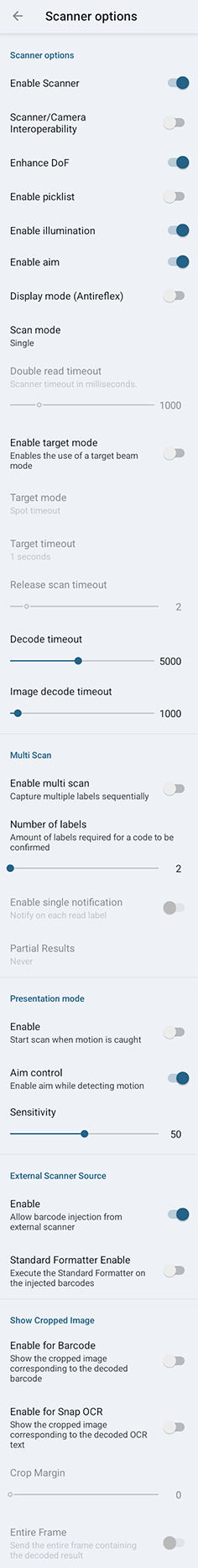

Tap Scanner Options to customize the device scanning behavior.
- Enable Scanner
- Scanner/Camera Interoperability
- Enhance DoF
- Enable picklist
- Enable illumination
- Enable aim
- Display mode (Antireflex)
- Scan mode
- Enable target mode
- Decode timeout
- Image decode timeout
- Enable multi scan
- Number of labels
- Enable single notification
- Partial Results
- Presentation Mode
- Aim Control
- Sensitivity
- External Scanner Source
- Standard Formatter Enable
- Show Cropped Image
- Enable for Barcode
- Enable for Snap OCR
- Crop Margin
- Entire Frame
Enable Scanner
Enables the internal scanner.
Scanner/Camera Interoperability
By default, the scanner is prevented from starting barcode scanning when the camera is in preview. This setting enables interoperability between the scanner and other cameras, allowing the user to scan barcodes even while another camera is in use.
Enhance DoF
If enabled, allows to enhance the maximum reading distance.
Enable picklist
If enabled, it allows you to pick and decode a barcode from multiple barcodes printed close together, when the scan illumination intersects more than one barcode. Only the targeted barcode will be returned.
Enable illumination
If enabled, it causes the scanner to turn on the illumination to aid decoding.
Enable aim
Enables the laser aim.
Display mode (Antireflex)
Optimizes the reading of a barcode from a screen.

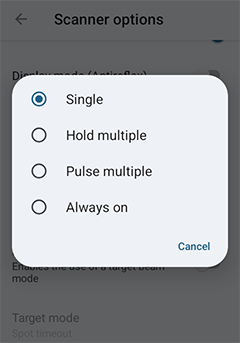

Scan mode
Selects the scan operating mode for the reader.
| Option | Description |
|---|---|
| Single | When the trigger is pulled, scanning is activated until one of the following occurs: • a label has been read • the trigger is released • the decode timeout has elapsed. |
| Hold Multiple | When the trigger is pulled, the device scans barcodes until the trigger is released or the decode timeout has elapsed. |
| Pulse Multiple | When the trigger is pulled, continuous scanning is activated until the decode timeout has elapsed or the trigger has been released and pulled again. |
| Always On | No trigger pull is required to read a barcode. Scanning is continually on. |
Enable target mode

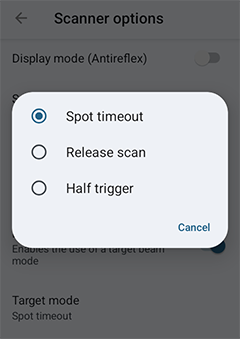

If enabled, when the scan button is pressed, the scanner will project an aiming pattern to assist in centering over the barcode before scanning. Tap Target mode to select the desired targeting behavior.
-

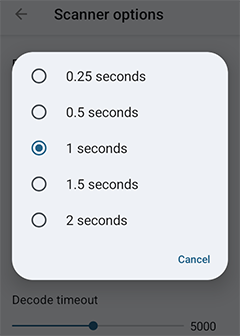

Spot Timeout: Scanning takes place after a programmable time upon pressing the scan button. Tap Target timeout to set the duration of the spot.
-
Release Scan: Scanning takes place after the scan button is released. Drag the Release scan timeout slider to set the scanning timeout after releasing the scan button.
-
Half Trigger: Enables the TrueAim™ two-stage trigger.
Decode timeout
Drag the slider to set the maximum amount of time the scanner attempt to decode after target timeout (in case Spot Timeout is enabled) or after the scan button is pressed (in case Target mode is disabled).
Image decode timeout
You can share any image (picture, jpg/png, etc.) with the Datalogic Service to try to decode it. Drag the Image decode timeout slider to set the decode timeout applied with image decoding.
Enable multi scan
If selected, the scanner captures multiple labels sequentially.
Number of labels
Drag the slider to indicate the amount of labels required for a code to be confirmed.
Enable single notification
If selected, it enables indicators for each label, in order to get an intermediate notification for each label decoded.

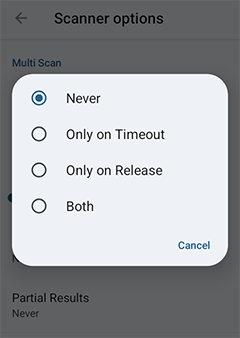

Partial Results
When multi scan mode is enabled, it selects the behavior when partial results are present.
| Option | Description |
|---|---|
| Never | The decoding session is ended successfully and all the collected labels are returned together, only if the Number of Labels is reached. |
| Only on Timeout | The decoding session is ended successfully and all the collected labels are returned together, only if the decode timeout has elapsed. |
| Only on Release | The decoding session is ended successfully and all the collected labels are returned together, only if the trigger is released. |
| Both | The decoding session is ended successfully and all the collected labels are returned together if the trigger is released or the decode timeout has elapsed. |
Presentation mode
If enabled, the device starts to scan when motion is caught.
Aim control
Enables the aimer while detecting motion.
Sensitivity
Drag the slider to configure the motion detector's sensitivity.
External Scanner Source
If enabled, allows barcode injection from an external scanner.
Standard Formatter Enable
Executes the Standard Formatter on the injected barcodes.
Show Cropped Image
The results of a barcode or OCR read may also include a cropped image of the data. These settings control its behavior.
Enable for Barcode
Sends a cropped image for decoded barcode labels.
Enable for Snap OCR
Shows the cropped image corresponding to the decoded OCR text.
Crop Margin
Sets the amount of margin to add to all borders of the cropped image (0 - 100 pixels).
Entire Frame
Sends the entire frame as the cropped image.
