Device Information
The Device information screen displays information about the device including: serial number, scan engine, sdk, system versions.
Device name base
Use this setting to customize the name of your device.

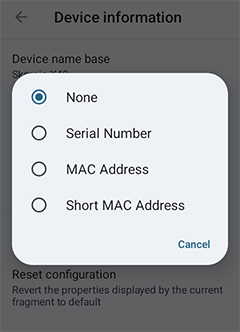

Device name suffix
Use this setting to add a suffix to your device name.
| Option | Description |
|---|---|
| None | No suffix. |
| Serial Number | Unique manufacturer hardware ID used for Datalogic EASEOFCARE Warranty registration, repair tracking, and service contracts. |
| MAC Address | Permanent hardware address of the Wi-Fi radio module, essential for configuring warehouse wireless network security and router access control lists (ACLs). |
| Short MAC Address | A truncated version of the MAC address used in compact barcodes on the device housing for quick scanning and inventory logging. |
About phone
The central repository for the mobile computer’s hardware configuration, enterprise software builds, and regulatory compliance data.
Access this section whenever you need to register your product for a warranty, verify network compatibility with a mobile carrier, provide technical details to customer support, or check if your operating system requires an update.
Basic info
| Info | Description |
|---|---|
| Device Name | The consumer or marketing model classification. |
| Android SDK | The specific framework API version provided by a particular release of the Android operating system. |
| Datalogic SDK | The specific release revision of Datalogic enterprise libraries used to interface with the device hardware features. See Datalogic SDK for more details. |
| Build number | The specific, internal identifier code that pinpoints the exact compilation of a software release. |
Detailed info
| Info | Description |
|---|---|
| Hardware | Provides info on the device model, the touchscreen firmware version, the factory version, the device ID, the device serial number, the device part number, the hardware revision, the scan engine, the wireless technologies. |
| Software | Provides info on the core, apps, and espresso tools version. |
| Espresso factory | Provides info on the Espresso extensions, an overlay firmware package containing Datalogic-specific drivers and APIs for Android (name, version, description, and status.) |
More info
Link to the About phone section of Android settings which contains device details such as the operating system version, model number, build number, IP address, MAC address, Bluetooth address, and security updates.
