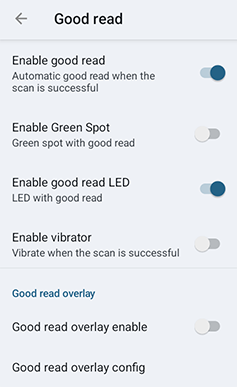

Good Read

Use this settings to enable good read notifications (LED, Green Spot, Vibrator).

Good Read

Enable good read​

Enables automatic good read notification when a scan is successful.

Enable Green Spot​

Enables Green Spot notification when a scan is successful.

Enable good read LED​

Enables LED notification when a scan is successful.

Enable vibrator​

Enables vibration notification when a scan is successful.

Good Read Overlay​

The Good Read Overlay feature is an additional good read indication which displays an image on the screen when a scan is successful. The image is drawn over the existing screen contents for the same duration as other good read indicators.

Tap Good read overlay enable to enable the Good Read Overlay notification when a scan is successful.

Tap Good read overlay config to configure the color, the shape policy and the position of the image and to customize the overlays.

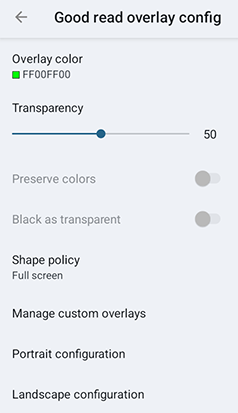

Good Read Overlay Config

Overlay color​

Specifies the color to use with the overlay. It is applied only when Preserve colors is disabled. The format is AARRGGBB (hexadecimal values of Alpha, Red, Green, Blue). The default value is FF00FF00.

Transparency​

Drag the slider to set the overlay transparency.

Preserve colors​

If enabled, the overlay image will retain its original colors and the overlay color will not be taken into account.

Black as transparent​

By default, the white areas in the overlay are treated as transparent. Enable this setting to treat the black areas as transparent.

Shape policy​

Specifies the shape to display for the overlay image. If Full screen is selected, the entire screen is filled with the selected color. The default value is Full screen. Select Custom to upload an overlay image.

Manage custom overlays​

Allow to upload the overlay image to use when the policy shape setting is Custom. The file must have PNG format.

Portrait configuration​

Configures the position and size of the overlay in portrait orientation.

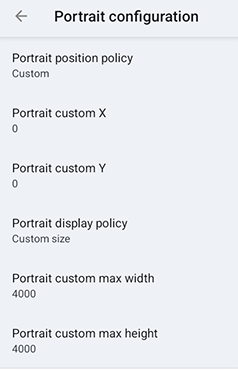

Portrait Configuration

Set the Portrait position policy to Custom to configure the X/Y coordinate settings.

Set the Portrait display policy to Custom size to configure the width/height settings.

Landscape configuration​

Configures the position and size of the overlay in landscape orientation.

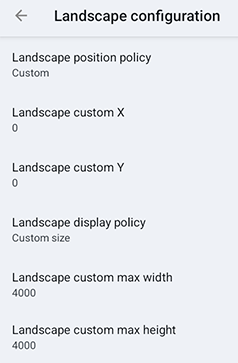

Landscape Configuration

Set the Landscape position policy to Custom to configure the X/Y coordinate settings.

Set the Landscape display policy to Custom size to configure the width/height settings.
