Datalogic WorkDesk
Datalogic WorkDesk can be installed through Google Play, an Enterprise Mobility Management (EMM) solution, or by using Scan2Deploy.
Overview
Datalogic WorkDesk is an Android application used to transform a mobile computer into desktop experience similar to a PC. It is designed to work with a Smart Dock to interface with an external display and/or peripherals such as a mouse, keyboard and/or printer.
Here is a list of the devices supported by Datalogic WorkDesk and the required minimum firmware version:
| Device | OS Version | Minimum Firmware Version |
|---|---|---|
| Memor 35/35X | 15 13 | TBD |
| Memor 30/30X | 15 13 | TBD |
| Memor 17 | 13 | TBD |
| Memor 12 | 13 | TBD |
| Memor K25 | 13 | TBD |
| Memor K20 | 13 | TBD |
Joya Touch 22 Memor 11, Skorpio X5, Memor 20, Memor 10, Memor 1, Memor K and Joya Touch A6 devices are not supported.
In addition, the following hardware peripherals are also required:
- Smart dock
- HDMI display
- USB mouse and/or keyboard (recommended)
Setup the Device
To start using Datalogic WorkDesk, the device must have the Desktop Mode property configured for "Dual Screen". This can be done on the device using the Settings app (under Datalogic Settings), or with OEMConfig using Scan2Deploy or an EMM.
Once the Desktop Mode has been set correctly, WorkDesk can be started by inserting the device into the Smart Dock. After a few seconds, the external display will show the desktop and is ready for use.
Main Features

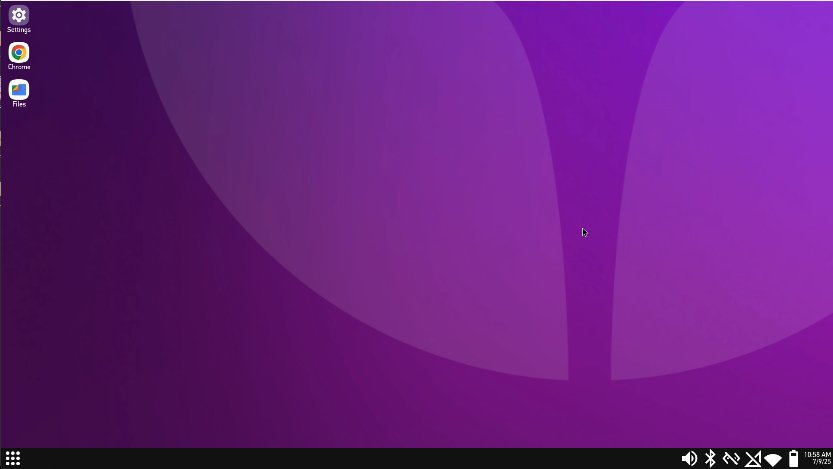

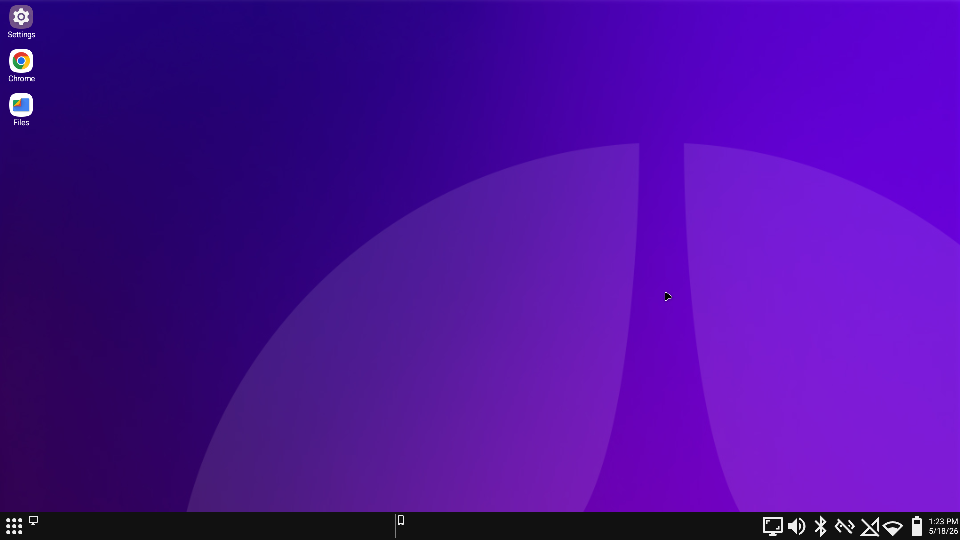

The display contents are similar to that of a desktop PC. The upper left area contains shortcuts to frequently used apps, and the bottom of the screen displays a taskbar containing the Apps Button (for launching apps) and device status indicators. Additional details on all these features are found under Features.
Configuration
The list of shortcuts and the overall appearance of the desktop and taskbar can be configured. To access the WorkDesk configuration, click on the Apps button (
) to see the Apps menu, then click on "WorkDesk Settings" at the bottom of the menu.

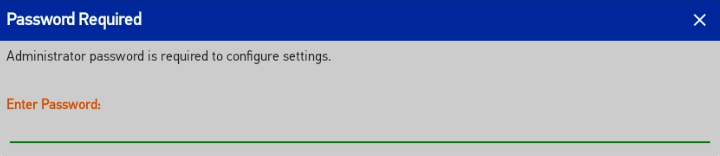

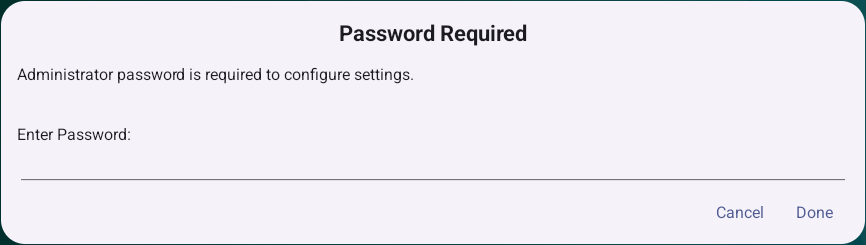

Access to the settings may be protected by an administrator password. In this case, configuration is only possible once access has been unlocked. The correct password must be entered before the settings can be accessed.
While unlocked, an indicator (
) appears in the lower right corner of the taskbar to indicate the unlocked state. Clicking on this status indicator returns to locked access. More information on WorkDesk configuration can be found in WorkDesk Settings.
