Code

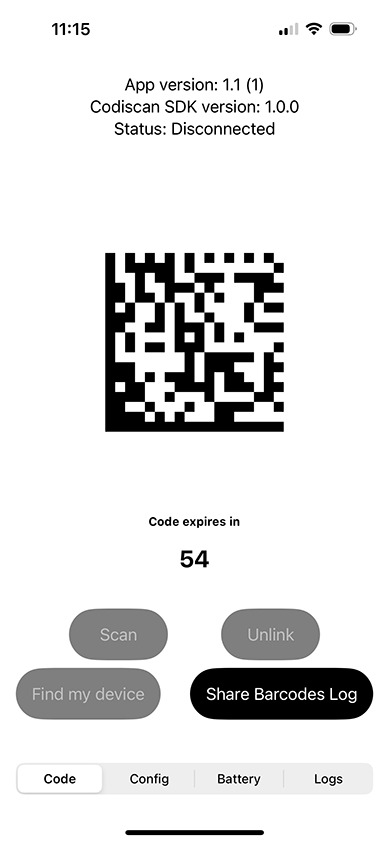

The Code tab before pairing shows a DataMatrix barcode for device pairing. The pairing barcode changes on every 60 seconds as per on-screen countdown.

Code Tab Pairing Mode

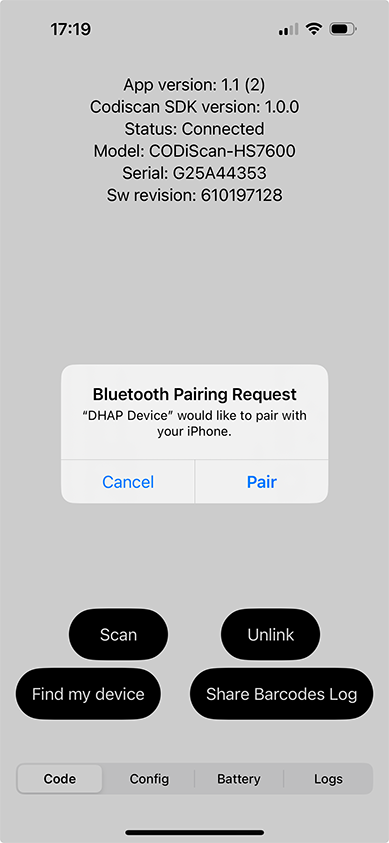

After the pairing DataMatrix barcode has been read by CODiscan, the Code tab shows a confirmation dialog. Without a direct confirmation from the end user, iOS does not allow BLE pairing.

Code Tab Pairing Confirmation

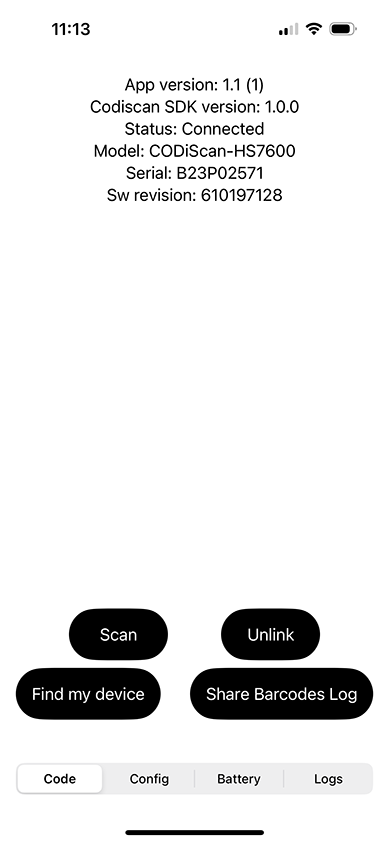

After confirmation, the Code tab shows the read barcodes and the buttons for Scan, Find my device, Unlink and Share Barcodes Log.

Code Tab Connected State

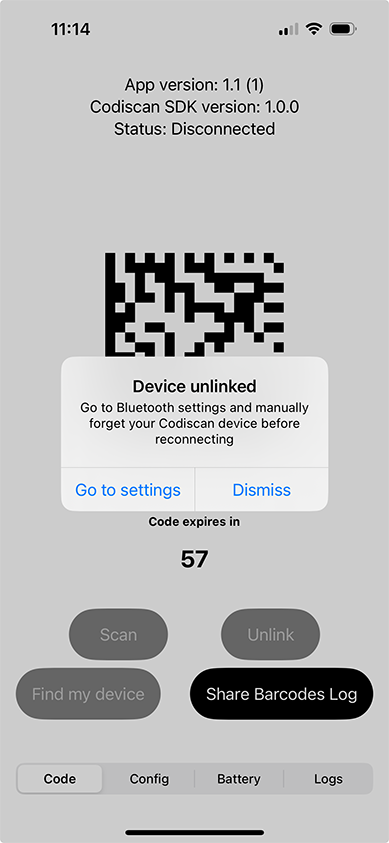

Press the Unlink button or readg the "Unlink" DataMatrix with CODiscan to disconnect.

Code Tab Unlink

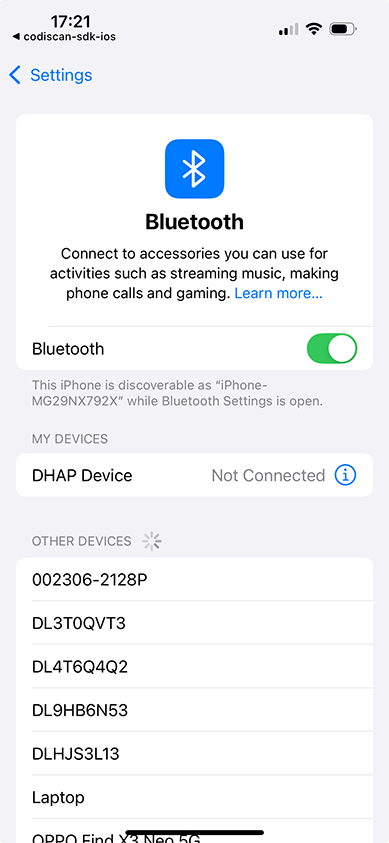

After performing an Unlink, it is necessary to forget the Codiscan (DHAP) device to allow further pairing with the same device in the future with the same iOS device.

Code Tab BT Settings
